12V 6 Way Pre-Wired Fuse Relay Box Kit with Two 80A 4-Pin Relays | 6 ATC/ATO Slots, Dustproof Covers, Universal Relay Panel for 4x4 truck RV LS swaps lights cooling fans
Product details
| Management number | 231742007 | Release Date | 2026/06/18 | List Price | US$7.48 | Model Number | 231742007 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【EASY INSTALLATION】Ready to use right out of the box. This 6-way fuse relay block kit includes two 4-Pin 80A JD1912 relays and 6 ATC/ATO blade fuses (10A, 15A, 30A). The color-coded, pre-wired harnesses save you hours of tedious crimping and wiring, preventing connection errors for a clean DIY setup
- 【IMPORTANT: SAFE OPERATING CURRENT】While the relays feature an 80A peak capacity, the system's actual limit depends on the pre-installed wire gauge. With 4mm² input and output wires, the maximum continuous safe load is 30A per circuit. Please verify your accessory's amperage and refer to the wiring diagram before connection to prevent overheating or blown fuses. Prefer to use your own custom wire gauges, We also offer an unwired version for advanced DIY projects
- 【WIDE AFTERMARKET APPLICATIONS】Engineered for ultimate safety. This relay box features 6 fuse slots, 2 of which are wired in series with the relays to provide double overcurrent protection for your circuits. A versatile electrical management solution perfectly suited for headlights, fog lights, air horns, audio systems, fuel pumps, cooling fans, LS swaps, and custom wiring on 4x4s, Trucks, SUVs, and RV trailers
- 【DUSTPROOF SHELL】Features secure top covers that effectively block dust, dirt, and debris while protecting the circuits from accidental contact. NOTE: This unit is strictly dustproof, NOT WATERPROOF. Please mount it in a dry location, such as the cabin or a protected area; do not expose it to direct rain, water splashes, or submersion

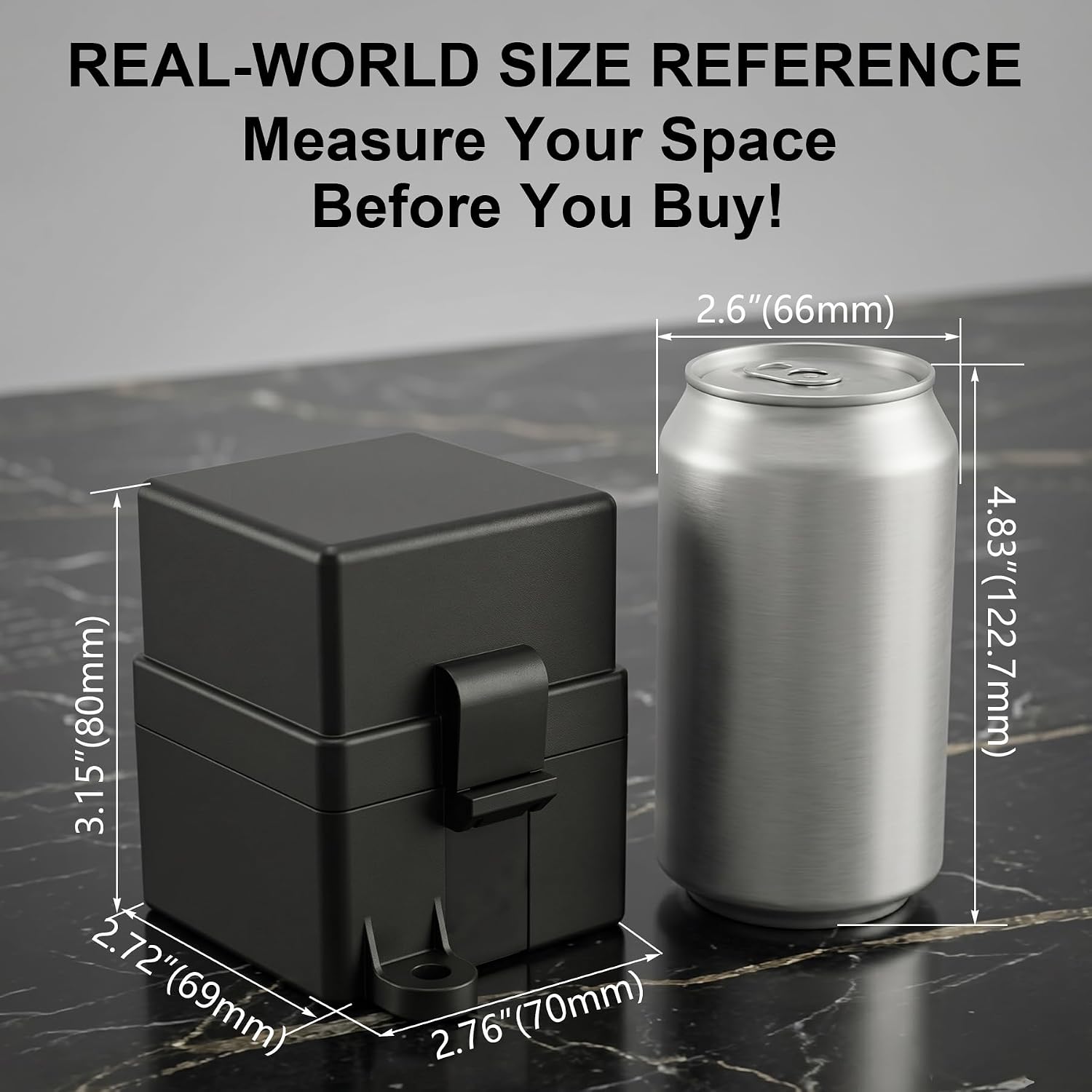

- 【VERIFY MOUNTING DIMENSIONS】To ensure a perfect fit, please carefully check the product dimensions shown in the listing images before purchasing. Ensure your vehicle has adequate clearance (whether under the hood, under the dash, or in the trunk) to accommodate the box's size and the space required for the bottom wire exits
| ASIN | B0DDWYT8JL |
|---|---|
| Model | FB62KA |
| Wattage | 1.2 watts |
| Brand Name | Weasch |
| Unit Count | 1.0 Count |
| Part Number | FB62KA |
| Coil Voltage | 12 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | Weasch |
| Mounting Type | Screw Mount |
| Connector Type | Plug-In |
| Current Rating | 80 Amps |
| Operation Mode | Automatic |
| Contact Material | Copper |
| Specification Met | CE |
| Included Components | FB62KA |
| Warranty Description | No |
| Contact Current Rating | 80 Amps |
| Minimum Switching Voltage | 12 Volts (DC) |
